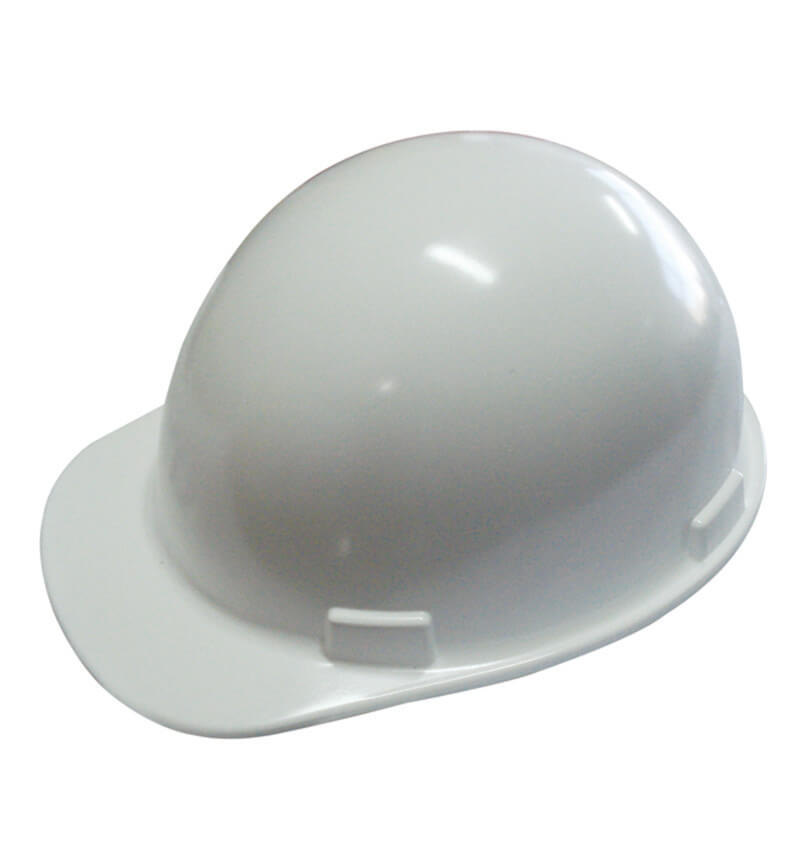

High Level Top Quality Industrial Helmet G166

Comply with CE Standard:EN397

Function: anti-puncture,anti-shock,Insulate

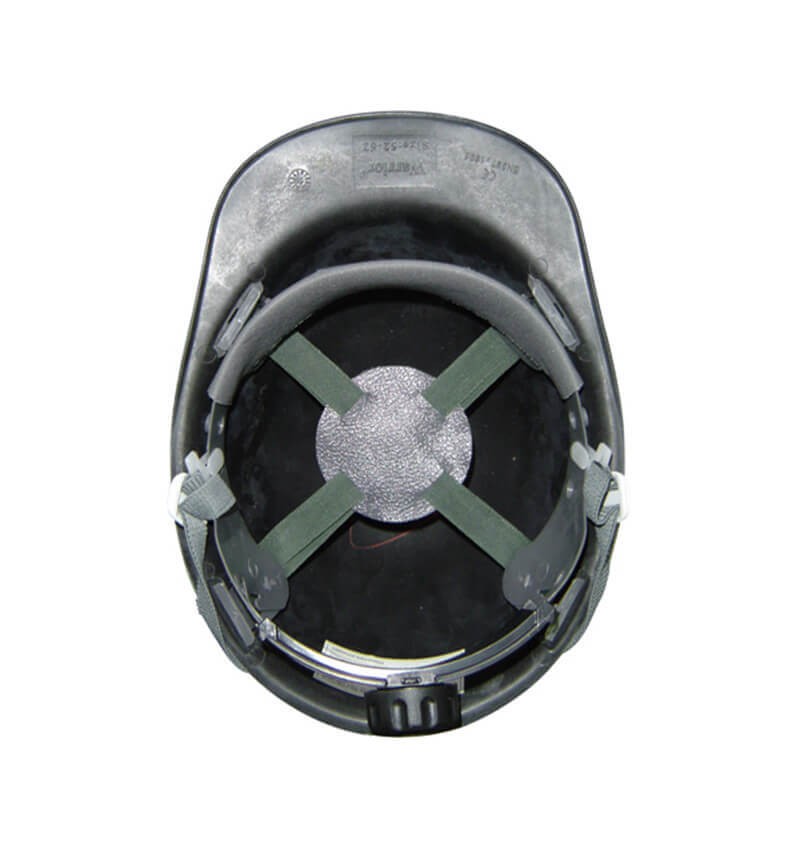

Liner cradle harness system: 4-point, 6-point

Headband size range: 53-61cm

With chinstrap, With sweatband.

Features

Shell Material	Harness material	Liner Suspension adjustment		Special Characteristic	Temperatures	Electical Properties (440Vac)	Lateral Deformation
Super fiber glass	Nylon (textile)	wheel ratchet	•	Anti-flame	-10ºC/+50ºC	440 Vac	Excellent √
		press plug
		buckle ratchet

Comfortable padding hard hats

Light weight shell helmet

Helmet color available: White

Packing:

Pr-Assembled or Separately(shell-inner) in same carton

50pcs/52x46x55cm, 16/15kgs.

EN 397:2012Industrial Safety Helmets

Mandatory tests:

Impact: Energy spread to head form must not exceed 5 kN after the fall of an object of 5 kg at 1m high.

Penetration: The tip of the test mass used (3 kg from 1 m height) must not come into contact with the skull.

Flammability: The helmet is exposed to a flame and it must not burn with flame emission more than 5 seconds after removal of the flame.

Impact and penetration tests are performed at room temperature, at +50ºC and at -10ºC.

Optional tests:

Resistance at extreme temperatures: testing impact and penetration are performed at +150ºC, at -20ºC or -30ºC temperatures.

Electrical properties: Protects against a short accidental contact with electric leads under voltage up to 440 Vac.

Lateral deformation:Protects against lateral compression. The maximum deformation of the helmets should be ≤ 40 mm (LD).

Molten metal splashes: The helmet is not deformed or penetrated by splashes of molten metal (MM).
