Comply with CE Standard: EN397
Function: anti-puncture, anti-shock
Liner cradle harness system: 4-point, 6-point
Headband size range: 53-61cm
With chinstrap, With sweatband.
Features
Shell Material | Harness Material | Liner Suspension Adjustment | Ventilation | Temperature | Electical Properties (440Vac) | Electrical Insulation(1000Vac/1500Vdc) | |
PE | Polyamide(textile) | wheel ratchet | • | √ | -10ºC/+50ºC | ||
press plug | • | ||||||
buckle ratchet | • |

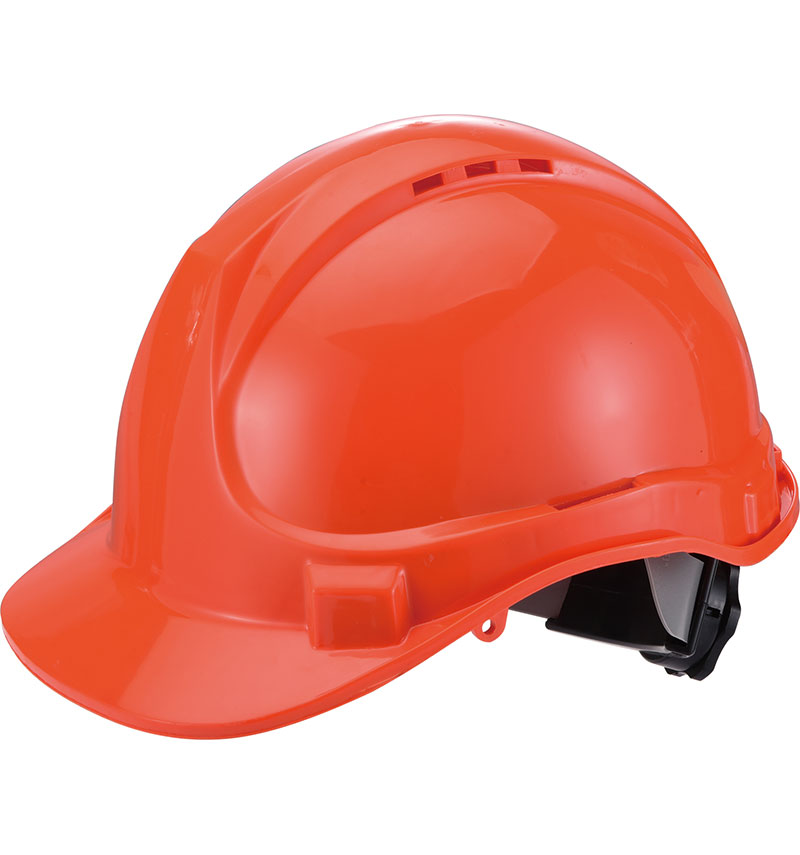

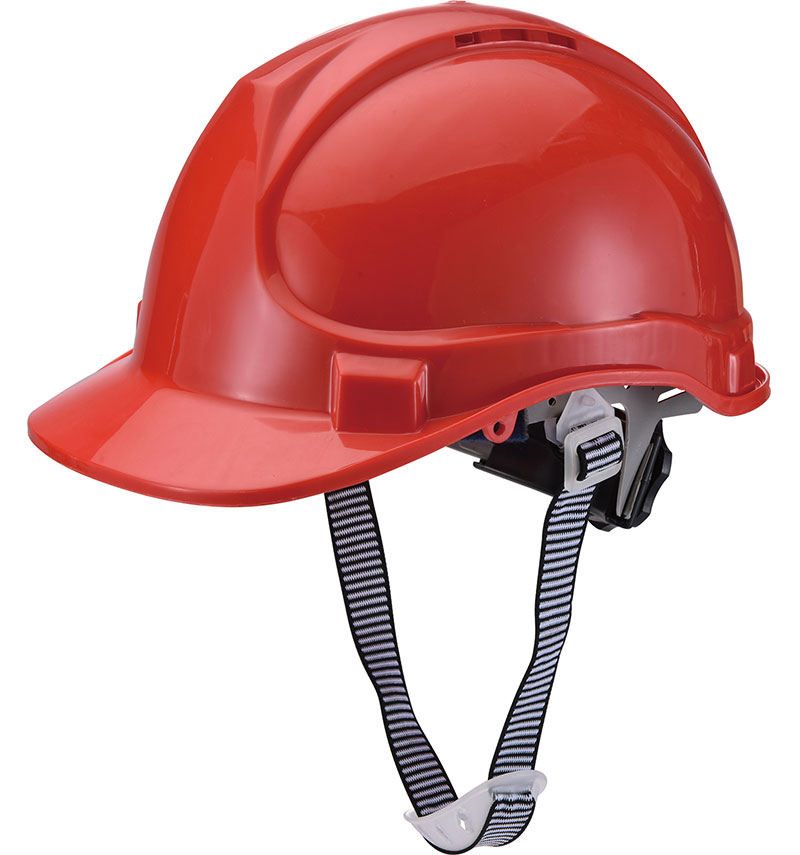

Comfortable padding hard hats
Light weight shell helmet
Packing:
Pre-Assembled or Separately in same carton
50pcs/52x46x55cm, 16/15kgs.
EN 397:2012 Industrial Safety Helmets
Mandatory tests:
Impact: Energy spread to head form must not exceed 5 kN after the fall of an object of 5 kg at 1m high.
Penetration: The tip of the test mass used (3 kg from 1 m height) must not come into contact with the skull.
Flammability: The helmet is exposed to a flame and it must not burn with flame emission more than 5 seconds after removal of the flame.
Impact and penetration tests are performed at room temperature, at +50ºC and at -10ºC.
Optional tests:
Resistance at extreme temperatures: testing impact and penetration are performed at +150ºC, at -20ºC or -30ºC temperatures.
Electrical properties: Protects against a short accidental contact with electric leads under voltage up to 440 Vac.
Lateral deformation: Protects against lateral compression. The maximum deformation of the helmets should be ≤ 40 mm (LD).
Molten metal splashes: The helmet is not deformed or penetrated by splashes of molten metal (MM).
