Mining Protection Safety Miner Helmet G171

Standard: EN397

Function: anti-puncture,anti-shock,Insulate

Liner cradle harness system: 6-point

Headband Size Range: 53-61cm

With chinstrap, With sweatband



Shell MaterialHarness materialLiner Suspension adjustmentCold ResistantTemperatureElectical Properties (440Vac)Electrical Insulation(1000Vac/1500Vdc)
ABSNylon(textile)wheel ratchet-30ºC/+50ºC440 VacMining Protection Safety Miner Helmet G171
press plug
buckle ratchet

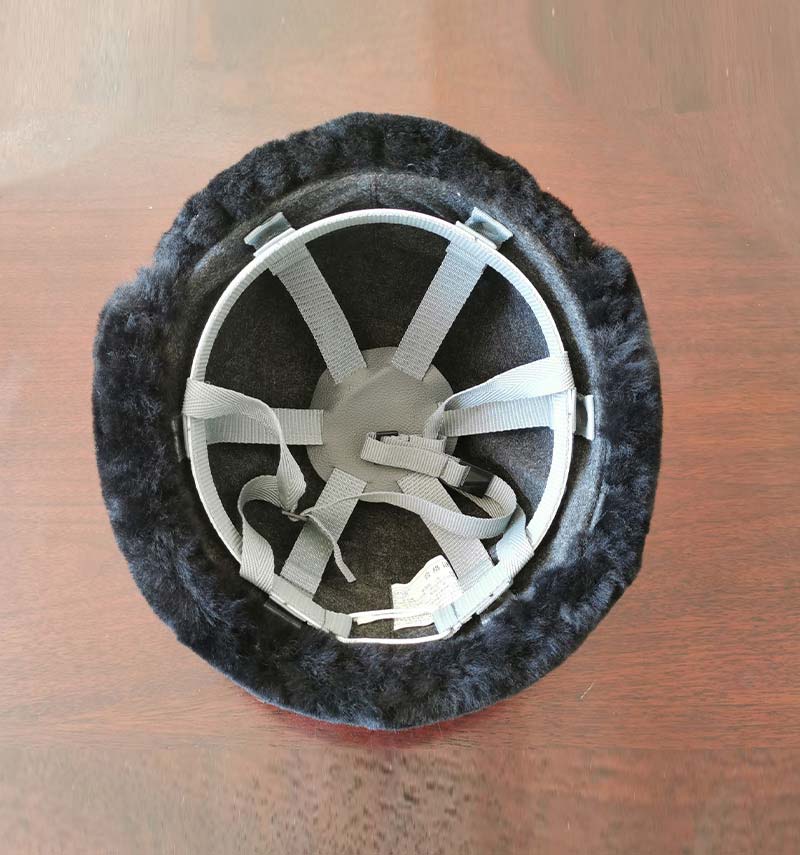

Comfortable padding

Lining wool to keep head warm during winter and low temperature.


Pre-Assembled or Separately in same carton

50pcs/52x46x55cm, 16/15kgs.

EN 397:2012 Industrial Safety Helmets

Mandatory tests:

Impact: Energy spread to head form must not exceed 5 kN after the fall of an object of 5 kg at 1m high.

Penetration: The tip of the test mass used (3 kg from 1 m height) must not come into contact with the skull.

Flammability: The helmet is exposed to a flame and it must not burn with flame emission more than 5 seconds after removal of the flame.

Impact and penetration tests are performed at room temperature, at +50ºC and at -10ºC.

Optional tests:

Resistance at extreme temperatures: testing impact and penetration are performed at +150ºC, at -20ºC or -30ºC temperatures.

Electrical properties: Protects against a short accidental contact with electric leads under voltage up to 440 Vac.

Lateral deformation:Protects against lateral compression. The maximum deformation of the helmets should be ≤ 40 mm (LD).

Molten metal splashes: The helmet is not deformed or penetrated by splashes of molten metal (MM).

EN 50365:2002

Insulating helmets for use on low voltage installations

This standard is for helmet used for working live or close to live parts on installations not exceeding 1000 V a.c. or 1500 V d.c.

Testing to EN50365 exceeds testing under EN397 for electrical properties.

Marking: double triangle + class + batch number.

ANSI/ISEA Z89.1: 2009

American National Standard for Industrial Head Protection

This standard describes Types and Classes, testing and performance requirements for protective helmets. These include recommended safety requirements for authorities considering the establishment of regulations or codes concerning the use of protective helmets.

TYPE I - Hard hats are designed only to withstand top impacts

TYPE II - Hard hats designed to withstand impacts from the top and the side.

Class C - Conductive Helmet = the hard hat will not protect the wearer from electrical hazards.

Class G - General Helmet = helmet can withstand an electrical current up to 2,200 volts.

Class E - Electrical Helmet = helmet that providing the highest level of electrical protection, withstanding currents up to 20,000 volts.
